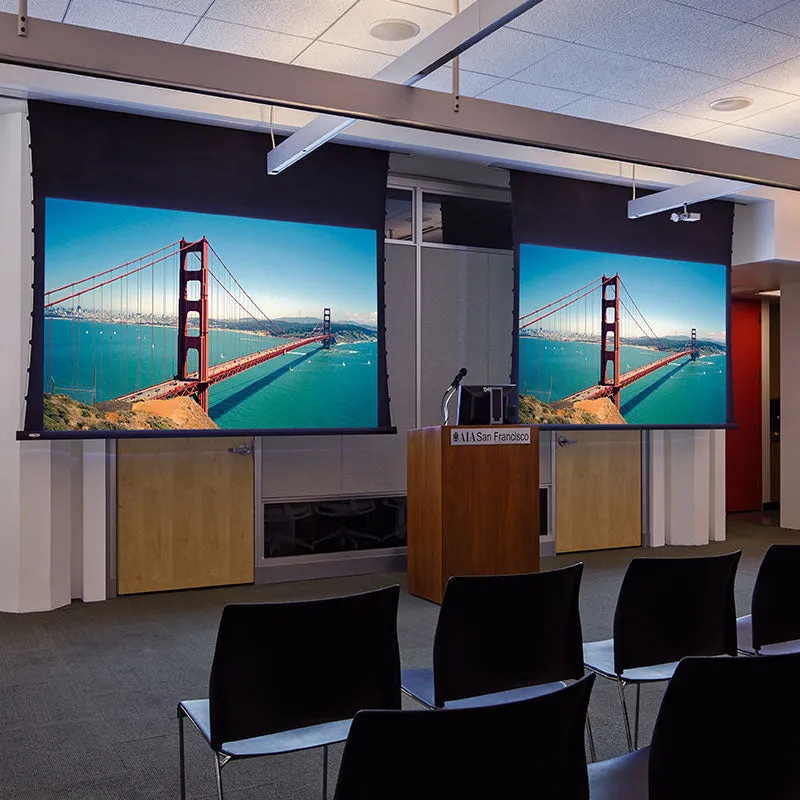

The Draper Access V [HDTV 16:9] Tab-Tensioned ceiling-recessed Electric Screen is a premium projection screen designed to deliver exceptional image quality and versatility for home theaters, conference rooms, or any space where high-quality video projection is desired. With a screen size of 110 inches (54" x 96"), this screen provides a large and immersive viewing experience.

One of the key features of this screen is its tab-tensioned design, which ensures a flat and wrinkle-free viewing surface. The tensioning system keeps the screen taut from all four sides, resulting in a smooth and uniform image without any distortion.

The ceiling-recessed installation allows the screen to be neatly concealed within the ceiling when not in use, providing a clean and uncluttered look to the room. This design also makes the screen easily accessible and ready for use at any time. The motorized electric operation enables effortless deployment and retraction of the screen with a simple press of a button.

The screen features a 16:9 aspect ratio, which is ideal for displaying high-definition content, including movies, presentations, and gaming. The HDTV format ensures compatibility with a wide range of video sources and delivers sharp, vivid visuals with enhanced color accuracy and detail.

Constructed with high-quality materials, the Draper Access V screen is designed to provide durability and long-lasting performance. The screen surface is optimized for wide viewing angles and even light distribution, allowing viewers to enjoy the projected content from various positions in the room.

Whether you are setting up a home theater or a professional presentation space, the Draper Access V [HDTV 16:9] Tab-Tensioned ceiling-recessed Electric Screen offers a premium projection solution that combines functionality, aesthetics, and superior image quality to elevate your viewing experience.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
